Mitsubishi EDiA-EM electric forklift - Feyter Feyter Forklift Services

This EDiA-EM is Mitsubishi's 3-wheel electric forklift series with lifting capacities ranging from 1.4 to 2.0 tons. The EDiA-EM forklifts are designed and built to perform in all aspects. Numerous unique features provide the maneuverability, power and reliability you have come to expect from Mitsubishi. This FB14-20A series contains the three-wheel forklifts of the EDiA-EM. The series consists of 6 electric forklift models - all 48 Volts - with lifting capacities ranging from 1.4 tons to 2.0 tons.

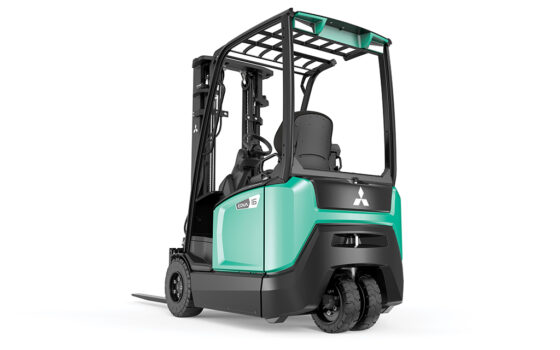

Mitsubishi FB14-20A : Electric three-wheel forklifts

The Mitsubishi EDiA-EM electric forklifts are without doubt some of the most intelligent and durable forklifts on the market. With a myriad of features, they provide the agility, power and reliability you’ve come to expect from Mitsubishi. The trucks operate intuitively and adapt their performance to the individual driver.

The EDiA-EM also contains a series of four-wheel forklifts.

Mitsubishi EDiA EM 3 Wiel Elektrische Heftruck (17)

Compact

Mitsubishi EDiA EM 3 Wiel Elektrische Heftruck (18)

Extra-large and low entry step

Offers good grip, ensuring safe, no-slip entry and exit - whatever the footwear.

Mitsubishi EDiA EM 3 Wiel Elektrische Heftruck (20)

Comfortable operating space

A large, ultra comfortable operating space has been enhanced to meet the needs of drivers of all shapes and sizes for fatigue-free operation.

Mitsubishi EDiA EM 3 Wiel Elektrische Heftruck (21)

Informative full-colour display

Easy to read from any angle (even with direct sunlight). It's perfectly positioned for operator reference and doesn't reduce the truck's all-round visibility.

Mitsubishi EDiA EM 3 Wiel Elektrische Heftruck (28)

Dual pedal (option)

Standard optimised pedal positioning encourages a more natural foot position for drivers of all sizes. Optionally available with a dual pedal system.

Mitsubishi EDiA EM 3 Wiel Elektrische Heftruck (27)

LED lights

Mitsubishi EDiA EM 3 Wiel Elektrische Heftruck (33)

Fingertip control

Touch-sensitive fingertip controls are spring-loaded for a natural feeling; the gentler the touch, the finer the control.

Mitsubishi EDiA EM 3 Wiel Elektrische Heftruck (29)

Enclosed cabin

For an even more comfortable work space the EDiA-EM can be equipped with an enclosed cabin, remaining the visibility for the operator.

Brand	Mitsubishi
Max. Capacity	2000 kg
Lifting Height	7000 mm
Capacity range	1400 - 2000 kg
Model	FB20ANT
Drive	Electric, 3-wheel
Load center	500
Truck weight	3342 kg
Number of wheels, front / rear (x=driven)	2x / 2
Length (ex. forks)	1969 mm
Width	1140 mm
Turning circle radius	1610 mm
Travel speed, with / without load	16 / 16 km/h
Lifting speed, with / without load	0.62 / 0.42 m/s
Lowering speed, with / without load	0.56 / 0.56 m/s
Battery voltage / capacity	48 V / 625-750 Ah
Type of drive control	AC
