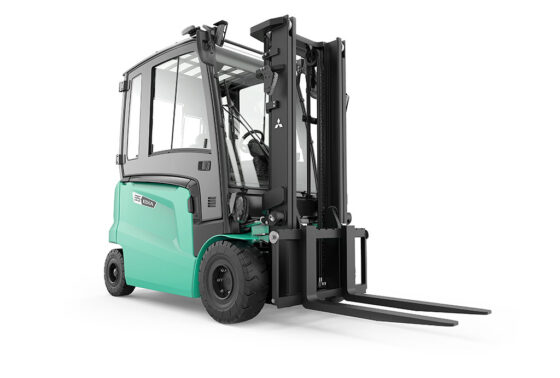

Mitsubishi EDiA-EX electric forklift - Feyter Feyter Forklift Services

The Mitsubishi EDiA-EX electric forklift series consists of 5 models with a lifting capacity ranging from 2.5 to 3.5 tons. Every feature of the Mitsubishi EDiA-EX exudes quality! The technology, the simple but effective design and the smooth operations.

With its high residual lifting capacity, the EDiA-EX gives you the power you need to lift heavy loads up to seven meters high. The two drive motors and +100° rear-axle steering provide the maneuverability to work in the most confined spaces.

Safety always comes first! This is evident in every aspect of the forklift; from the comfortly shaped steering wheel to the cleverly formed, compact counterweight. They maximize the operator’s view on the environment and the load.

Four wheel steering

Front axle drive motors turn in separate directions for better grip and precise handling. The rear axle steers through a full 100°, with dual drive motors for instant, smooth turning on the spot and no initial 'push'. This offers excellent manoeuvrability in tight spaces.

Intelligent Cornering System

The truck senses the angle of a turn and reduces speed early for maximum stability and accurate, positive cornering.

ECO mode

This mode optimises energy efficiency and gives smoother performance. Ideal for long shifts, training, new users, and part-time users.

PRO mode

This mode maximises performance parameters, giving full control to more experienced operators in intensive situations.

Mitsubishi EDiA-EX elektrische heftruck display

Unparalleled 360° visibility

An optimised mast, wheel, dashboard and counterweight design maximises visibility to load, forks, front and rear wheels - giving safe, confident operation in tight spaces.

Clear, informative display

Full colour and easy to read from all angles. even in direct sunlight. Perfectly positioned for at-a-glance reference, without reducing all-round visibility.

Touch-sensitive fingertip controls

Controls have a natural-feeling, spring-loaded response: press gently for finer control.

Easy charging latch

Small latch on the side of the truck allows charging cable to be connected without opening the battery door. (Li-ion option only)

Mitsubishi EDiA-EX elektrische heftruck met joysticks

Dual joysticks

Dual joysticks offer simultaneous functions for lift and tilt, and settings can be customised to customer requirements. (Option)

Load sensing hydraulic system

Load handling functions react similarly to different load weights.

Strong, high-visibility mast

Free-lift cylinder structure is optimised with hoses over chains for outstanding visibility.

Automatic parking brake with hill hold

The truck stops automatically when the accelerator is not engaged, preventing rolling on ramps. No need to remember to use a handle or switch.

Sealed, wet-disc brakes

Truck uses regenerative braking in normal driving, so mechanical brakes have a long life span and are virtually maintenance-free.

Brand	Mitsubishi
Max. Capacity	3500 kg
Lifting Height	7000 mm
Model	FB35N
Drive	Electric
Load center	500 mm
Truck weight	5591 kg
Number of wheels, front / rear (x=driven)	2x / 2
Max. lift height	7000 mm
Length (ex. forks)	2558 mm
Width	1190 mm
Turning circle radius	2064 mm
Travel speed, with / without load	18 / 18 km/h
Lifting speed, with / without load	0.45 / 0.6 m/s
Lowering speed, with / without load	0.5 / 0.45 m/s
Battery voltage / capacity	80 V / 700-775 Ah
Engine, output	25.5 kW
Type of drive control	AC
