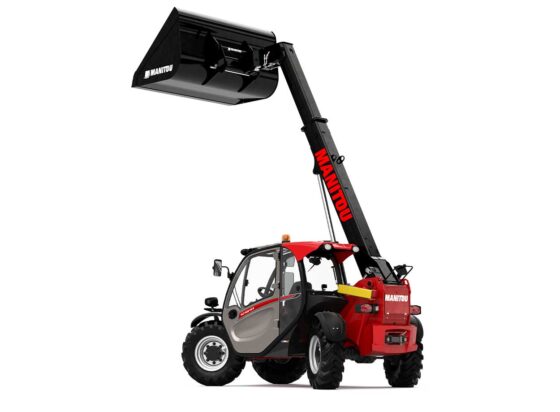

Manitou MLT-625

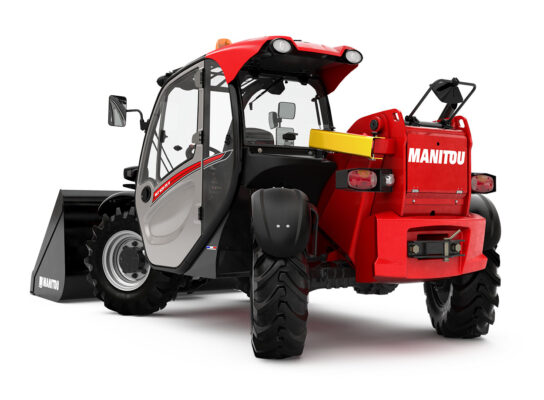

The Manitou MLT-625-75H rough terrain telescopic handler has been developed with ultra compact dimensions. At less than 2m high, 1.81m wide and a ground clearance of 38cm, the MLT-625 can easily enter your buildings and operates in areas which are inaccessible to other machinery. It will enable you to carry out all farm handling operations: animal feed, bale handling, bulk loading and unloading.

Compact and versatile

Dairy and livestock farms, nurseries, poultry or any operation where space is restricted, you will appreciate all the qualities of this machine. More than just a handling solution, with this Manitou MLT-625 we offer you a machine which both looks good and is comfortable to use: the interior and exterior have incorporated the latest modern design technology.

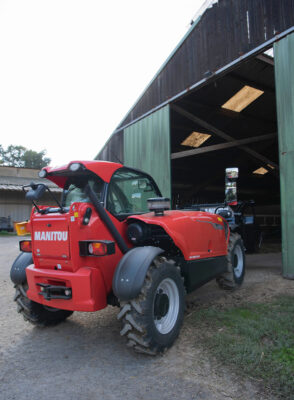

Manitou MLT-625 Compacte Landbouw Verreiker (11)

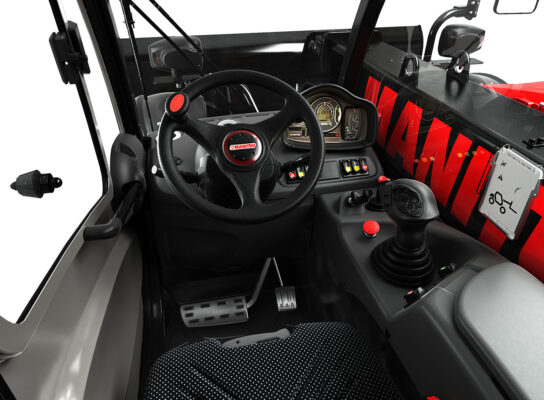

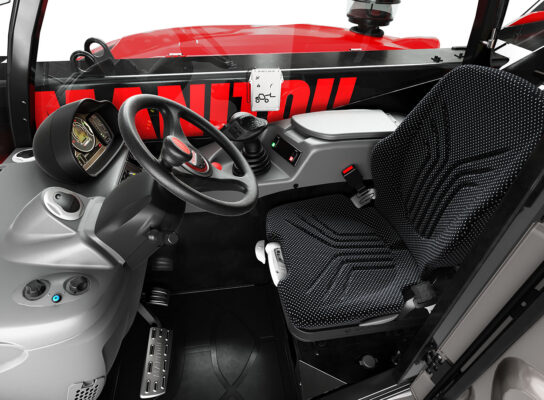

Ergonomic cabin

The driving position has been designed with operator comfort in mind. Low noise levels and improved driver productivity is achieved due to the full soundproofing of the cab (only 76 dB) and engine compartment areas. The dashboard has a digital display which gives all the information you need during work.

4 x 4 x 4

The Manitou MLT-625 can fully access the majority of your working environment. With four wheel steering, four wheel drive, the compact dimensions of your machine and its excellent turning circle makes it easy to fulfil your daily tasks.

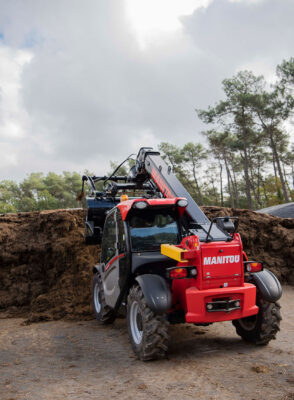

All terrain

In addition to its ground clearance of 38 cm, the Manitou MLT-625 is fitted with 18” agricultural profile tyres. The excellent traction and grip allows the machine to operate on all types of terrain. You can work in any situation and versatility becomes part of your daily life.

Classic, Premium, Elite

The Manitou MLT-625 is available in 3 standard variations with different levels of finish: Classic, Premium and Elite.

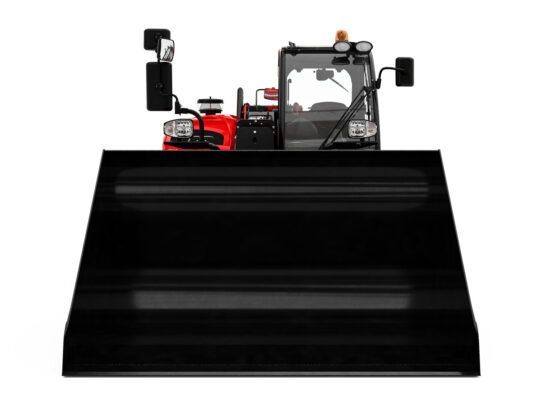

Manitou MLT-625 Compacte Landbouw Verreiker (4)

Hydraulic performance

The 90 l/min, 235 bar hydraulic gear pump provides high flow hydraulic performance for a machine of its class. Combined with the JSM lever it enables you to achieve fast working cycles.

Brand	Manitou
Max. Capacity	2500 kg
Lifting Height	6000 mm
Model	MLT-625 75H
Drive	Diesel
Transmission	Hydrostatic
Truck weight	3922 kg (with forks)
Number of wheels, front / rear (x=driven)	2x / 2x
Length (ex. forks)	3.90 m
Width	1.81 m
Turning circle radius	3.31 m
Travel speed, with / without load	25 km/h
Engine, brand	Kubota
Engine, type	V3307-CR-T-E5B
Engine, output	55.4 kW
