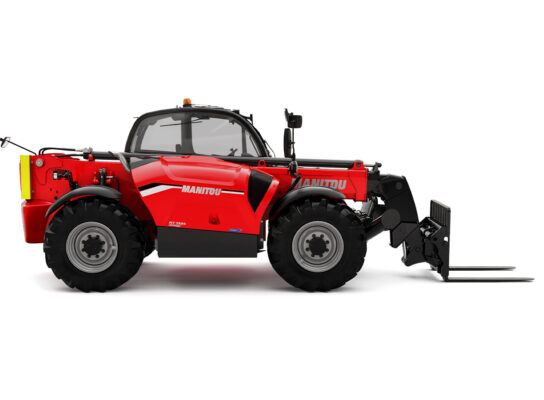

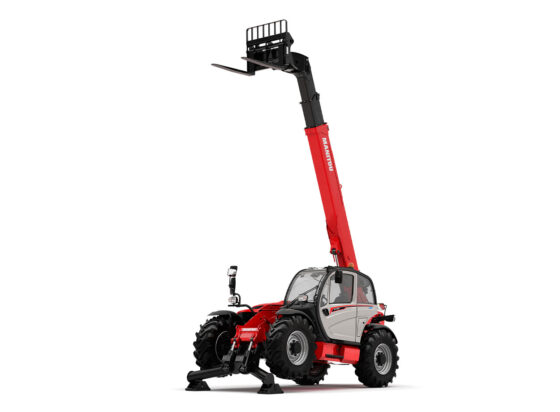

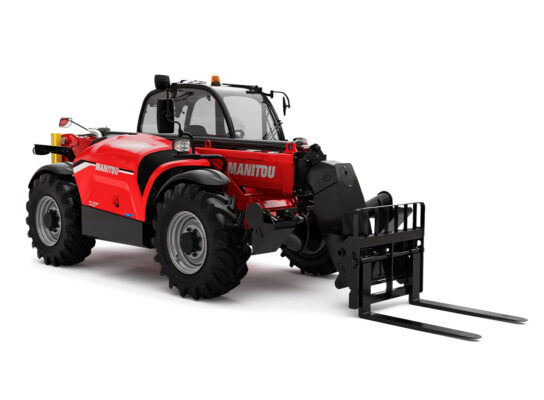

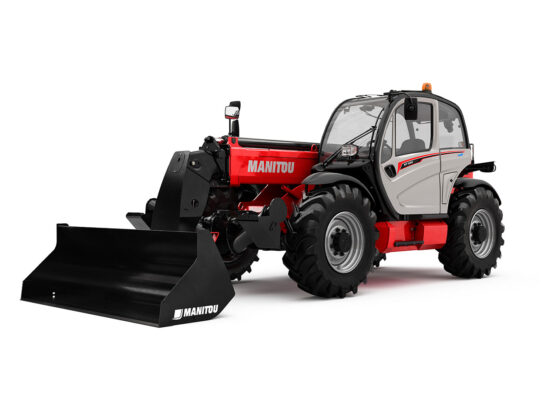

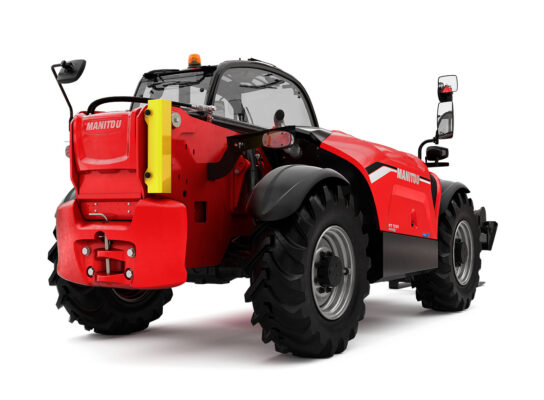

The Manitou MT-1335 telehandler is designed for construction sites for 2 or 3 storey buildings. It is equipped with compact stabilizers that improve its load-carrying capacity and its overall performance, while also allowing the machine to maneuver smoothly on narrow sites. It has a lifting height of 13 metres and a lifting capacity of 3500 kg.
The MT-1335 has a 102 hp engine and 4 drive wheels so that it can move efficiently on all kind of terrains. Maintenance is simplified by the double opening of the engine compartment and the diagnostic screen on the instrument panel. This lift truck combines comfort and performance for all your medium-high-rise projects.
For driver comfort, the spacious cab is equipped with a JSM joystick and an ergonomic and intuitive dashboard. The cab is easily accessible through the large door.
| Brand | Manitou |
| Max. Capacity | 3500 kg |
| Lifting Height | 12550 mm |
| Model | MT-1335 ST5 |
| Drive | Diesel |
| Transmission | Torque convertor |
| Load center | 500 mm |
| Truck weight | 9050 kg |
| Number of wheels, front / rear (x=driven) | 2x / 2x |
| Width | 2.28 m |
| Turning circle radius | 3.84 m |
| Travel speed, with / without load | 25 km/h |
| Engine, brand | Deutz |
| Engine, type | TCD 3.6 Stage V |
| Engine, output | 75 |
