Manitou MT-420

Manitou

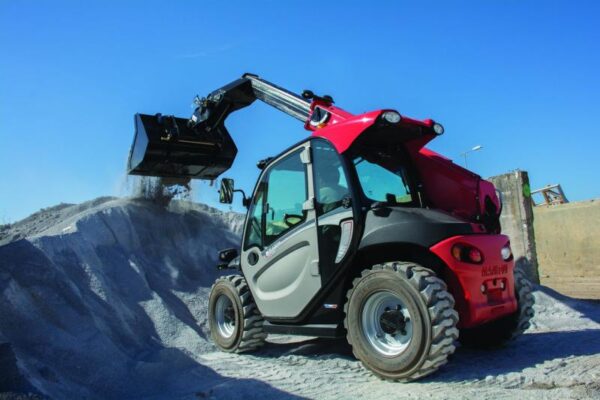

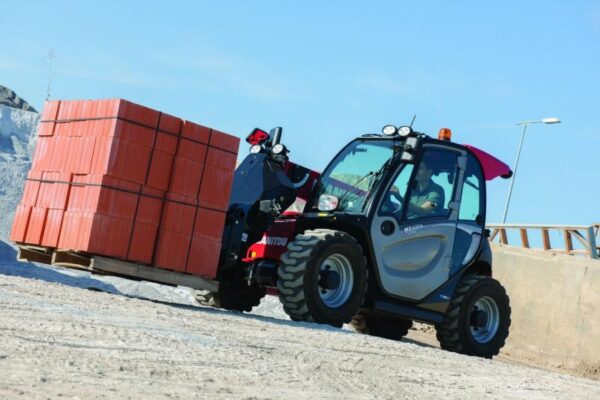

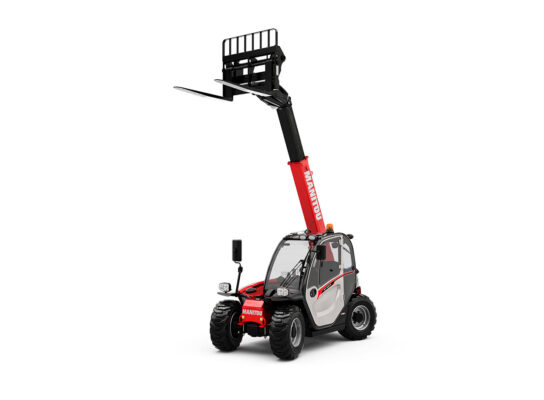

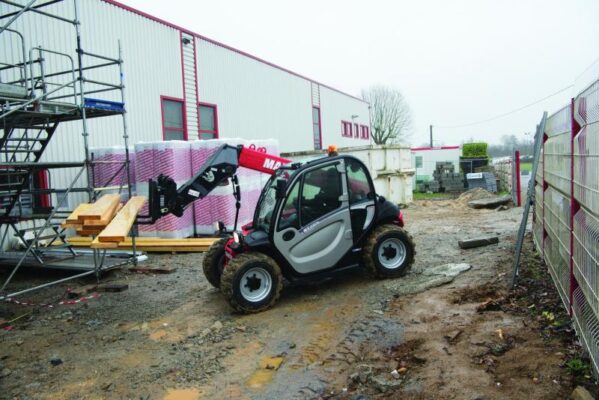

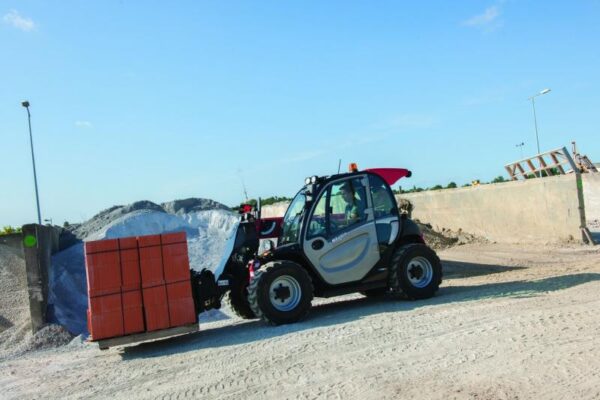

The Manitou Buggy telehandler, the MT-420, is the most compact telehandler in the MT range. With its exceptionally small dimensions, 1.49 meters wide and 1.90 meters high, this telehandler has access to confined spaces. Combined with its maneuverability and 4-wheel drive, the MT-420 Buggy is ideal for use on any construction site. Read more

Max. Capacity 2000 kg
Lifting Height 4300 mm
Drive Diesel
Transmission Hydrostatic
More specifications
Download PDF

The Manitou Buggy telehandler, the MT-420, is the most compact telehandler in the MT range. With its exceptionally small dimensions, 1.49 meters wide and 1.90 meters high, this telehandler has access to confined spaces. Combined with its maneuverability and 4-wheel drive, the MT-420 Buggy is ideal for use on any construction site.



Ultra compact and maneuverable telehandler

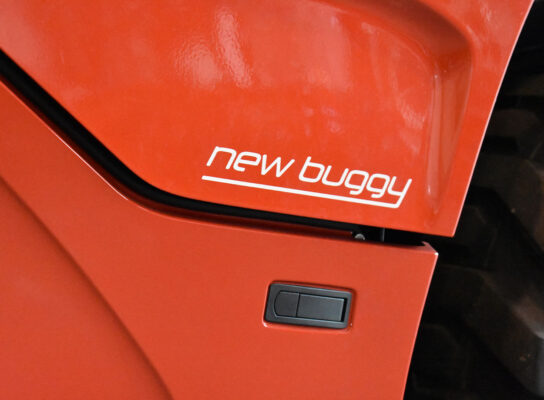

The MT-420 H New Buggy is Manitou’s most compact telehandler. With its exceptional size, the MT-420 is your partner in every field! The machine is able to get into the tightest of spaces. It is robust, equipped with 4-wheel drive and has a turning circle of less than 3 meters. All in all, a particularly versatile machine that will come in handy on any construction site.



Easy in use
The Manitou MT-420 H New Buggy has the same cabin as the Manitou MT-625, its slightly bigger brother. This means that the MT-420 is also very intuitive to use. Thanks to the simple controls and the wide range of accessories, you can use the telehandler for many tasks and have it controlled by different people if desired.



Rent or buy a telehandler
Regardless of whether you want to buy or rent a telehandler, We are there for you! We have many Manitou’s in our rental fleet, which can be deployed instantly. Via the Request a quote tab you can immediately request what it will cost to rent for a day, week, month or longer.

Those who prefer to buy a new machine will benefit from a long warranty period (minimum 12 months and maximum 36 months) and a telescopic handler that is fully equipped for their specific work. Feel free to request a quote without any obligation to get a price indication and to discover more about the possibilities of Manitou Finance leasing, extended guarantees, options, etc.

Walk-Around video

See the Manitou MT-420 telehandler explained in this introduction video.
Brand Manitou
Max. Capacity 2000 kg
Lifting Height 4300 mm
Model MT-420 H
Drive Diesel
Transmission Hydrostatic
Load center 500 mm
Truck weight 4190 kg
Number of wheels, front / rear (x=driven) 2x / 2x
Width 1.49 m
Turning circle radius 2.98 m
Travel speed, with / without load 25 km/h

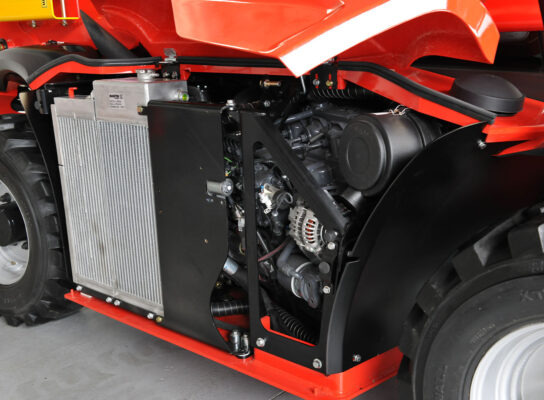

Engine, brand Kubota
Engine, type 2607-CR-E5
Engine, output 42 kW
