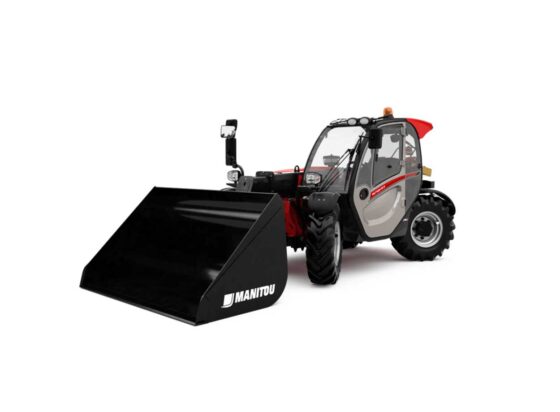

Manitou MT-625 H

Manitou

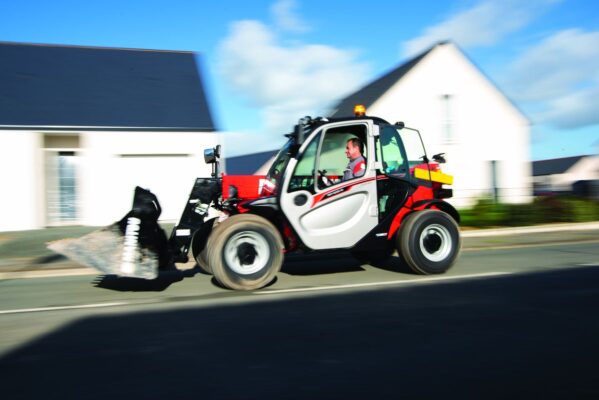

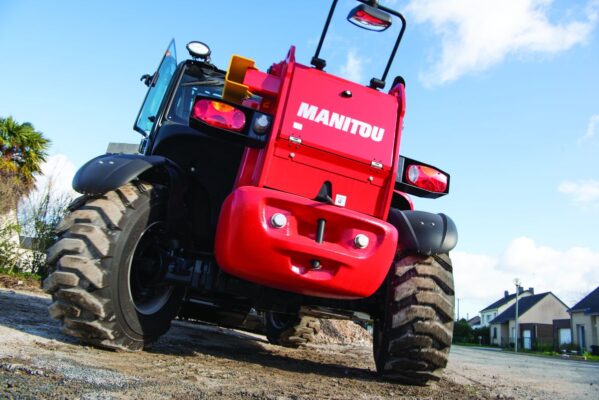

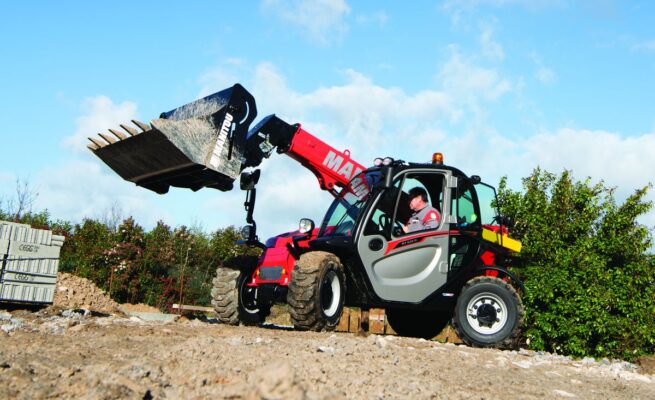

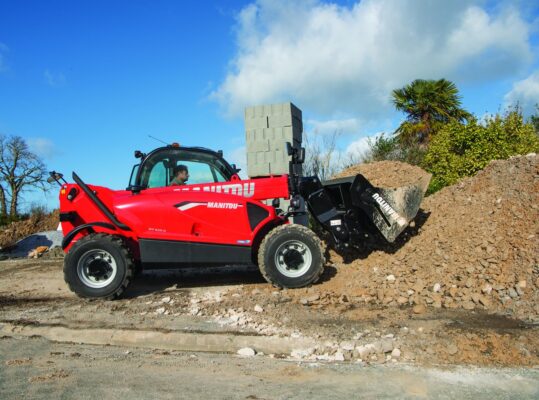

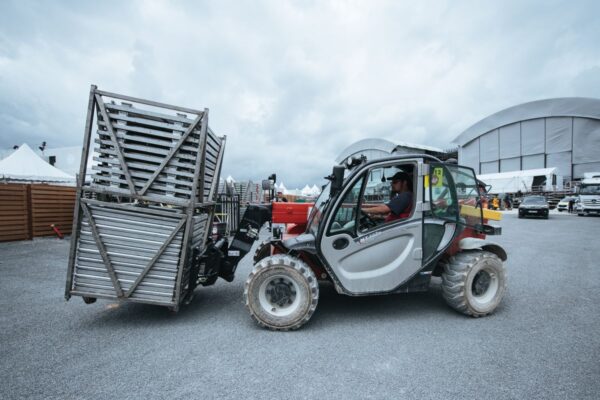

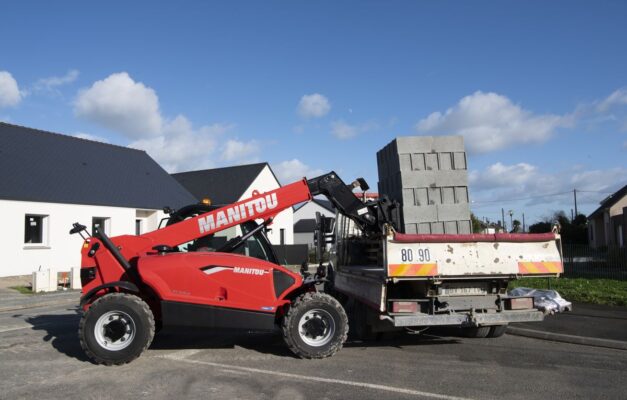

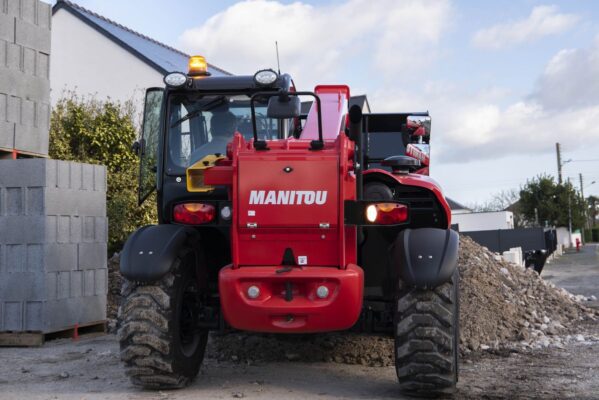

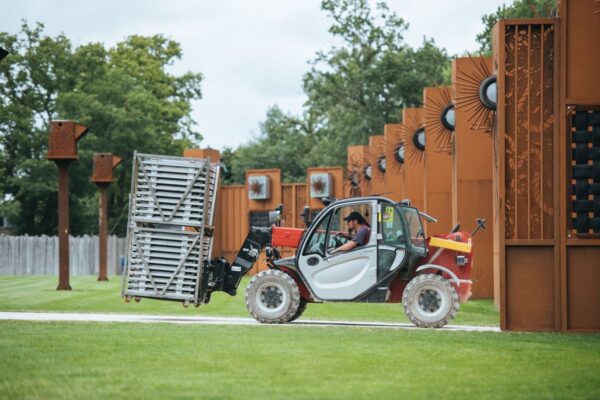

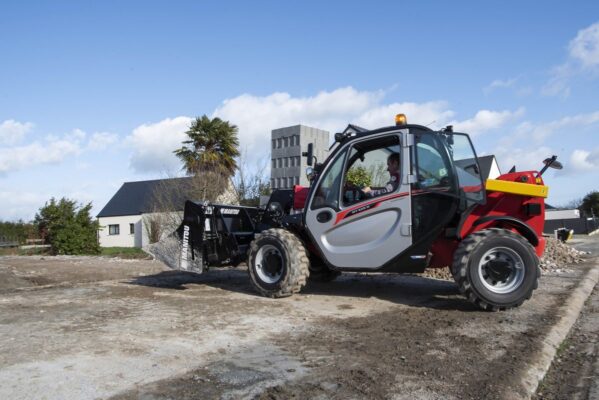

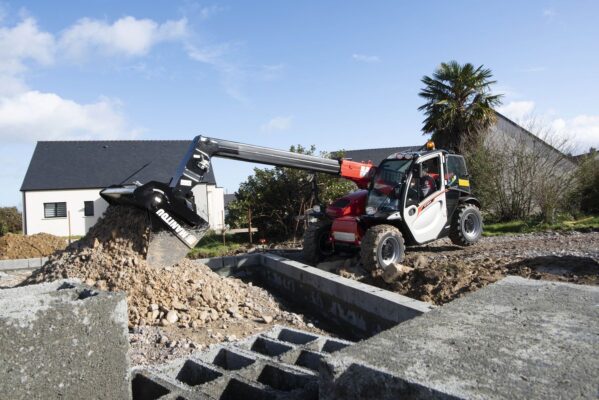

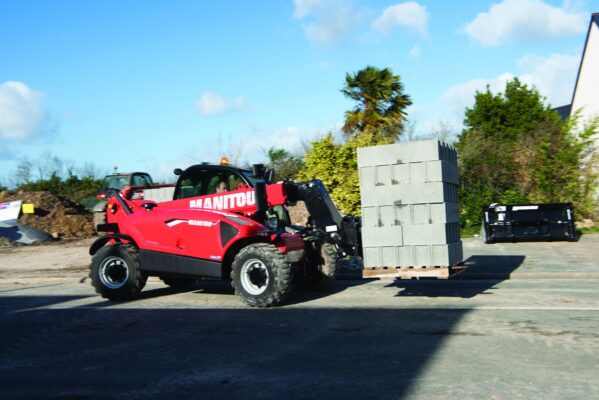

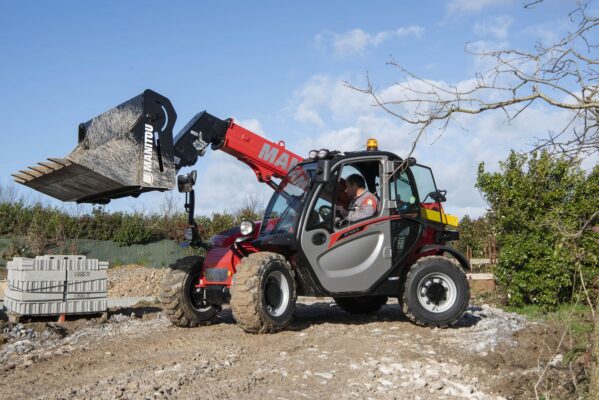

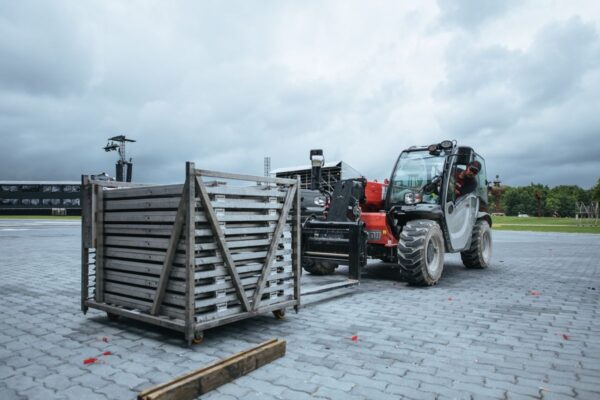

The Manitou MT-625 all-terrain telehandler combines a 2.5 ton lifting capacity and 6 metres lifting height with compact dimensions. It enables you to carry out all your handling work: placing pallets on the first floor of a building, bulk loading or unloading from storage area or on site, handling goods in underground car parks and low buildings on congested sites. Read more

Max. Capacity 2500 kg
Lifting Height 6000 mm
Drive Diesel
Transmission Hydrostatic
More specifications

The Manitou MT-625 all-terrain telehandler combines a 2.5 ton lifting capacity and 6 metres lifting height with compact dimensions. It enables you to carry out all your handling work: placing pallets on the first floor of a building, bulk loading or unloading from storage area or on site, handling goods in underground car parks and low buildings on congested sites.

Commercial and industrial building sites have become more complex. You have to work on sites which are becoming ever more confined and meet increasingly strict specifications in terms of cost and deadlines while remaining vigilant with regard to working conditions and the safety of your operators.



In the MT-625 you find more than a compact truck. Manitou offers a simple and efficient solution which will save you time: intuitive when you’re getting started through the Joystick Switch & Move system (exclusive to Manitou), startup in only 10 seconds and functional dashboard.





OPTIMISED DIMENSIONS

Designed with construction and renovation in mind, the Manitou MT-625 has exceptional characteristics in terms of compactness when compared with other telehandlers. With a width and height less than 2 m (1.81 x 1.92 m), the MT-625 moves easily in restricted spaces (in materials storage areas, on urban or confined sites, under low headroom entrances and underground car parks).





REACTIVITY

The hydrostatic transmission provides flexible and progressive control for positioning a load with more accuracy and safety. This system adapts the performance of your machine to the operators requirements. Using the inching function, you can adjust the speed of travel of the truck independently of the engine speed. Perfect for tricky operations





WORKING IN COMFORT

The whole driving position offers you a working space which has been ergonomically designed for maximum comfort. All the main controls are easily accessible. A selection of standard and optional equipments are available for enhanced comfort and safety of the MT telescopic handlers to satisfy your daily needs.

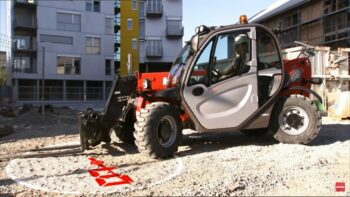

Introduction video

See the Manitou MT-625 telehandler in action in this introduction video.
Brand Manitou
Max. Capacity 2500 kg
Lifting Height 6000 mm
Model MT-625 H
Drive Diesel
Driveline 4x4
Transmission Hydrostatic
Load center 500 mm
Truck weight 4800 kg
Number of wheels, front / rear (x=driven) 2x / 2x
Width 1.81 m
Turning circle radius 3.31 m
Travel speed, with / without load 25 km/h
Engine, brand Kubota
Engine, type V3307-CR-TE5B
Engine, output 55,4 kW
