Impression

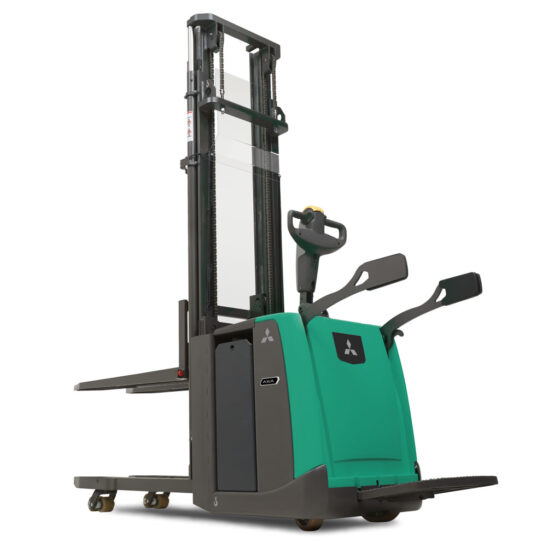

The Mitsubishi AXIA-EM pallet stacker is available with a fixed or a folding platform. It offers the operator the option to choose whether to walk behind the machine or ride along. This makes the AXIA-EM suitable for pallet transport over short and long distances. The machine is robust and can be fitted with battery change rollers for quick battery changes. Therefore, it is an ideal stacker for heavy duty work and multiple shifts.
These Mitsubishi warehouse machines are manufactured in the Swedish factory, formerly known as Atlet which became part of the Mitsubishi group. For many years these machines are known for their well-thought-out concepts in the field of productivity, ergonomics and safety.
The typical ergonomic steering arm of the pallet stacker ensures that the operator can control the machine with both hands and always has all functions within reach.
The Mitsubishi AXIA-EM allows the driver to choose whether to ride on the platform or to walk behind the machine. The foldable platform is robust and shock absorbing. Optionally various fixed platforms are available as well.
Li-ion battery
Fast charging - removing the need for extra batteries. (Optional)
Left-handed or right-handed controls
The tiller arm's versatile design allows for operation from either side.
Initial Lift
Can be used as a double pallet handler. (Optional)
Power steering resistance
Natural driving experience to engage drivers and keep them alert.
PIN-code access
Stops unauthorised truck use and keeps you aware of who's operating at all times.
Dampened platform
Besides the foldable side arms for protection it's also possible to choose for fixed side protectors, allowing the operator to stay in a more natural driving position for greater comfort throughout shifts.
Powerful AC drive motor
Excellent traction and ramp performance, smooth, quiet, controlled operation, extended shift length and lower maintenance requirements.
| Brand | Mitsubishi |
| Max. Capacity | 1600 kg |
| Lifting Height | 5400 mm |
| Model | SBV16P |
| Drive | Electric |
| Load center | 600 mm |
| Truck weight | 3600 kg |
| Max. lift height | 5400 mm |
| Length (ex. forks) | 990 / 1374 mm |
| Width | 770 mm |
| Turning circle radius | 1790 / 2175 mm |
| Travel speed, with / without load | 8.5 / 8.5 km/h |
| Lifting speed, with / without load | 0.16 / 0.33 m/s |
| Lowering speed, with / without load | 0.39 / 0.31 m/s |
| Battery voltage / capacity | 24V / 220Ah - 400Ah |
| Type of drive control | AC |
